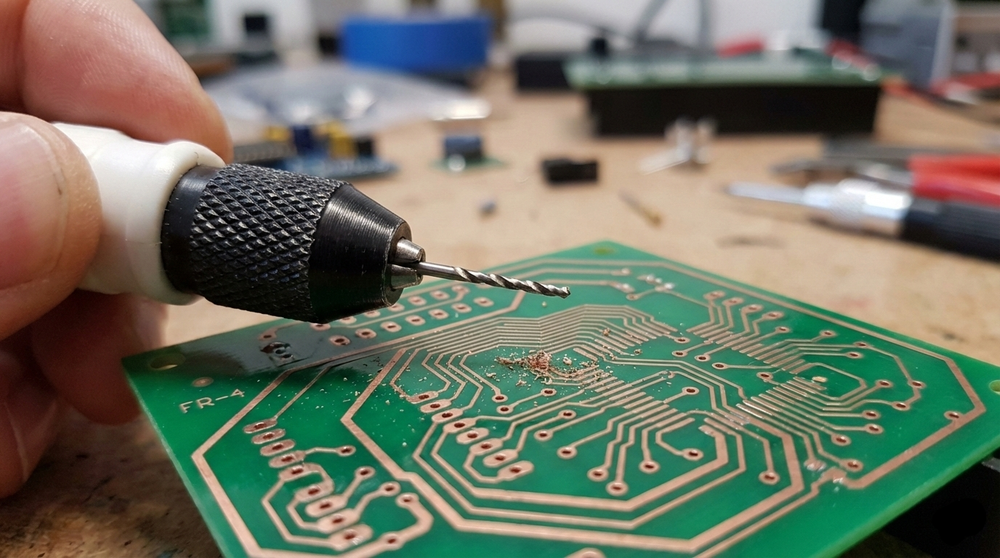

Drilling printed circuit boards requires patience, accuracy, and the right tools. Unlike wood or plastic, PCBs demand precise hole placement and clean edges to protect copper traces. That is why many makers rely on a pin vise drill paired with high-quality HSS micro drill bits. This guide explains how to drill PCBs correctly using manual tools, even if you are a beginner.
Why Precision Matters When Drilling PCBs
PCBs contain thin copper layers and fragile substrates. One mistake can lift a trace or ruin a pad. Using a high-speed electric tool often creates too much vibration and heat.
A manual pin vise tool gives you full control. You drill slowly, apply steady pressure, and stop exactly where needed. This makes it ideal for prototype boards, hobby electronics, and repairs.
Understanding PCB Drill Bit Sizes
Most PCB holes are very small. Common component leads require holes between 0.6 mm and 1.2 mm. That is where a hand drill comes in.
Typical pin vise hand drill sets include multiple sizes so you can match the hole to the component lead exactly. Some kits also include dedicated PCB bits ranging from 0.3 mm to 1.2 mm, which are perfect for ICs and resistors.
High-speed steel bits made from HSS M4341 are preferred because they stay sharp and resist snapping during manual drilling.
Why Use a Pin Vise Instead of an Electric Tool
Comparing a standard pin vise with an electric rotary tool reveals one key advantage: Control.
Electric tools spin too fast for delicate PCB work. Even a slight slip can widen the hole or tear copper pads. A micro hand drill allows you to feel resistance and adjust instantly.
For hobbyists and small-scale electronics work, a pin vise is often the safer and more reliable option.
Tools You Need Before You Start
Before drilling, gather everything you need.
- Pin vise hand drill with a smooth rotating top
- HSS drill bit set with PCB sizes
- Scrap wood or backing board
- Marker or center punch
- Safety glasses
Having the right setup reduces mistakes and broken bits.
How to Drill PCB Holes Step by Step
This step-by-step pin vise guide for beginners walks you through the process clearly.
Secure the PCB
Place the board on a flat surface with a scrap backing underneath. This prevents tear-out on the exit side.
Mark the hole locations
Most PCBs already have guide marks. If not, lightly mark the center of each hole.
Choose the correct bit size
Match the bit to the component lead diameter. Smaller is better than larger.
Insert the bit into the pin vise
Tighten the chuck firmly so the bit does not wobble.
Drill slowly and vertically
Apply light pressure and rotate the tool evenly. Keep the bit straight.
Clear debris frequently
Lift the bit out every few turns to remove dust.
These tips help ensure clean, accurate results.
Common Mistakes to Avoid
Even experienced users make mistakes when rushing.
- Applying too much pressure
- Using dull or bent drill bits
- Drilling without a backing board
- Tilting the bit during rotation
- Not securing the workpiece
Avoiding these errors will improve accuracy and extend bit life.
Choosing the Right HSS Micro Drill Set
A good mini drill set for crafts and electronics usually includes multiple bit sizes and protective storage. Look for sets that include silicon cap tubes to keep bits organized and safe.
Some sets also include extra PCB-specific bits in ultra-small sizes. These are especially useful for fine-pitch components and repair work.
Pro Techniques for Cleaner PCB Holes
If you want professional-level results, follow these micro drilling best practices.
- Let the bit cut naturally without forcing
- Rotate smoothly instead of stopping and starting
- Replace bits at the first sign of dullness
- Keep your wrist steady and vertical
These habits make a noticeable difference in hole quality.
Pin Vise Accessories for PCB Work
Useful pin vise accessories include spare chucks, protective bit tubes, and labeled storage cases. Keeping bits sorted by size saves time and prevents accidental damage.
A well-organized craft hand drill set helps you work efficiently, especially during multi-hole projects. Craft911 Pin Vise sets go a step further by including clear size charts, allowing you to identify the correct drill bit instantly without relying on measuring tools or guesswork. This saves time, improves accuracy, and ensures consistent results across every hole you drill.
Maintenance and Care for PCB Drilling Tools
Proper pin vise maintenance and care keeps your setup reliable.
- Wipe bits clean after drilling fiberglass boards
- Store bits in capped tubes
- Avoid dropping or bending small bits
- Periodically check the chuck for debris
Clean tools lead to consistent results.
Who Should Use This Method
Manual PCB drilling is ideal for hobbyists, students, and makers working on small batches or prototypes. If you value accuracy over speed, a precision micro drill setup is the right choice.
It is also perfect for repair jobs where you need to redrill or clean existing holes without damaging the board.
Final Thoughts
Learning how to drill PCBs properly is a valuable skill for any electronics enthusiast. Using a pin vise drill with quality HSS micro drill bits gives you control, accuracy, and confidence.
With patience and practice, you can drill PCB holes cleanly and consistently, just like a pro.
